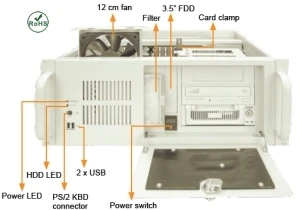

RACK360G Chassis

Features

Cost effective, RoHS compatible design

 USB x 2 & PS2 on front panel for easy accessibility

Flexible drive combination

12cm cooling fan with replaceable fan filter

Lockable front door prevents unauthorized access

Specifications

Construction : Heavy duty metal

SBC Form Factor : Full-size, slot CPU card

Drive Combinations :

     3 x 5.25" + 1 x 3.5 HDD, or 2 x 5.25" + 2 x 3.5 HDD, or 2 x 5.25" + 2 x 3.5 HDD, or 2 x 5.25"+ 2 x front accessible 3.5"

Cooling Fans : 1 x 12cm

I/O Ports : 2 x USB, 1 x PS/2

 I/O Openings : 2 x COM, 2 x LPT, 1 x PS/2

Expansion Slots : 14-slot for RACK-360G; 7-slot for RACK-360GATX

 Indicators : Power, HDD

 Operating Humidity : 10~90% RH, non-condensing

Buttons : Power switch, reset

  Dimensions : 435.5(D)*431(W)*176(H)mm

Operating Temperature : 0 to 50 degree C

 Net/GW (kg) : 11/15.4
