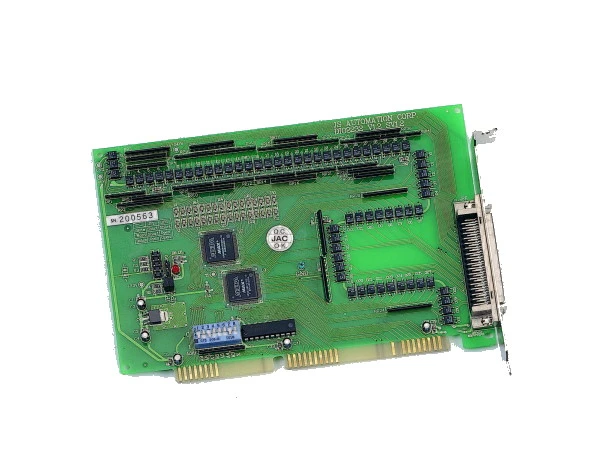

DIO-2232數位輸出入控制卡

Applications

Accept : P.B. / M.S. / EMG. / Contact - Start / Stop / Limit switch / sensor

As I/O of S/W PLC Controller

Features

32 isolated DI and 32 isolated DO channels

No output transition during start-up

High voltage isolation on all isolated channel(2500Vac)

Output status readback

DIN rail wiring board with different output options

Specifications (With Matched Wiring Board)

Main Card -- Digital Input

Input : 32 photo-isolated

OFF state : 8Vdc(min) 3mA(max)

ON state : 2.8Vdc(max) 4.5mA(min)

Switching speed : 2.2KHz max.(with on board debounce circuit)

Main Card -- Digital Output

Output : 32 photo-isolated

Output rating : 1A @120Vdc(NMOS)

Output range : Open drain 0 ~ 100Vdc

                             1A @24Vdc(PMOS)

Switching speed : 20KHz(max)(MOS out only)

                             3A @250Vac, 30Vdc(Relay)

Main Card -- General

Insulation resistance : 100M Ohm(min) at 1000Vdc

Operation temperature : 0 to +70 degree C

Isolation voltage : 2500Vac 1Min

Storage temperature : -20 to +80 degree C

Connector : One 68-pin SCSI II female connector

Operation humidity : 5~95% RH, non-condensing

Dimensions  : 157(W)*110(H) mm, 6.18(W)*4.33(H) in

DIN rail mounted wiring board

Power Requiremant : 24Vdc ± 4Vdc

Input : 32 with LED indicator, 8 digit per group with Green LED at first digit

Output :

     DIO-3232DIN(N) : 32 NMOS(Sink 1A @120Vdc) with LED indicator, 8 digit per group with Green LED at first digit

     DIO-3232DIN(P) : 32 PMOS(Source 1A @24Vdc) with LED indicator, 8 digit per group with Green LED at first digit

     DIO-3232DIN(R) : 32 Relay(3A @250Vac, 3A @30Vdc) with LED indicator, 8 digit per group with Green LED at first digit

Power indicator : Red LED

Operation temperature : 0 to 70 degree C

Connector : One 68-pin SCSI II female connector

Operation humidity : 5~95% RH, non-condensing

Dimension : DIO-3232DIN(N) : 121(W)*159(L)*47(H) mm, 4.76(W)*6.26(L)*1.85(H) in
